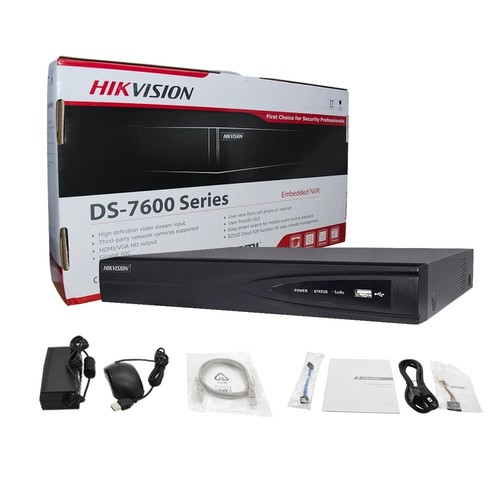

Hikvision 4ch Cctv Security Camera System

Hikvision 4CH CCTV Security Camera System kit 4MP PTZ 25X Zoom IR Speed Dome lot Tips > Hikvision APP : hik-connect, guard viewer, IVS-4200 >Search Tool
：SADP （search device and change IP address） > Warranty: 3 years > If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online. This is Hikvision Original Camera, support update firmware! Features DS-2DE4425IW-DE(T5) 4-inch 4MP 25X Powered by DarkFighter IR Network Speed Dome Focuses on human and vehicle targets classification based on deep learning Support face capture. Up to 5 faces captured at the same time 1/2.8" progressive scan CMOS High quality imaging with 4 MP resolution Excellent low-light performance with powered-by-DarkFighter technology 25× optical zoom and 16× digital zoom provide close up views over expansive areas Expansive night view with up to 100 m IR distance Support H.265+/H.265 video compression DS-7604NI-K1/4P Embedded Plug & Play 4K 4CH NVR > Third-party network cameras supported > Up to 8 Megapixels resolution recording > Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) Resolution > 4-ch network cameras can be connected with 80M/256M incoming bandwidth > Up to 1 SATA interfaces > Plug & Play with up to 4 independent PoE network Interfaces > Support dual-os to ensure high reliablility of system running > Support various VCA detection alarm and VCA search > Support H.265/H.264/MPEG4 video formats Product Specification DS-2DE4425IW-DE(T5): Camera Image Sensor 1/2.8" progressive scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed 1 s to 1/30,000 s Slow Shutter yes Day & Night IR cut filter Zoom 25x optical, 16x digital Lens Focus Auto, semi-auto, manual Aperture Max. F1.6 Zoom Speed Approx. 3.6 s Focal Length 4.8 mm to 120 mm FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele) Illuminator Supplement Light Type IR Supplement Light Range IR Distance: up to 100 m PTZ Proportional Pan Yes Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Power-Off Memory yes 3D Positioning yes PTZ Status Display yes Preset Freezing yes Video Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG Region Of Interest (ROI) 8 fixed regions for each stream Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Bit Rate 32 kbps to 16384 kbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile Scalable Video Coding (SVC) H.264 and H.265 encoding Audio Audio Compression G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Network Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View Up to 20 channels User/Host Up to 32 users, 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Client iVMS-4200, HikCentral Pro, Hik-Connect Web Browser Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11 Image Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB SNR > 52 dB Defog Digital defog Image Stabilization EIS Image Enhancement BLC, HLC, 3D DNR Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus Yes Regional Exposure Yes Interface Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Alarm 1 input, 1 output Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω Reset Yes Event Basic Event Motion detection, video tampering alarm, exception, alarm input and output Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Deep Learning Function Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) General Power
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
PoE (802.3at) Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Demist Yes Material ADC12 Dimensions Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42") Approx. 2 kg (4.41 lb.) Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection DS-7604NI-K1/4P: Video/Audio Input Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ) IP video input: 4-ch Network Incoming bandwidth: 40Mbps Outgoing bandwidth: 80Mbps Video/Audio Output HDMI Output: 1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Audio Output: 1-ch, RCA (Linear, 1kΩ) VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Decoding Capability: 4-ch@1080P Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Hard Disk SATA: 1 SATA interface for 1 HDD Capacity: Up to 6TB capacity for each HDD External Interface Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface USB Interface: 2, USB2.0 POE Interface: 4 independent 10 /100 Mbps PoE Ethernet interfaces General Power Supply: 48 VDC Consumption(without hard disk and POE): ≤ 10 W Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF) Working Humidity: 10 % ~ 90 % Chassis: 315 mm chassis Dimensions: 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") Weight(without HDD): ≤ 1 kg (2.2 lb) Payment Shipping Policy Return and Warranry About us Contact us Payment 1. We accept Paypal only. 2. If you need more goods, but price is too high, Or cannot find it in our store, please feel free to contact us. 3. We do not cover customs tax or VAT under any circumstances. Shipping Policy 1.  Items will be shipped out within 1 to 3 business days after ordered by the shipping way you choose. 2.  As for some items, they are big and heavy, we don't set specific shipping fee, but actually we can send items to all over the world. If you are interested, welcome to contact us about shipping fee. Different countries, the shipping fee vary. 3.  if you want to order more items or you are wholesaler, you can make best offer with us, we will provide you best price. Return and Warranry 1. Please read the entire product description before bidding. 2. We can't be responsible if you fail to read the description. 3. We will be more than happy to answer any questions promptly. 4. Items and shipping address can’t be changed after item shipped. 5. We provide 3 year warranty, for items over 3 year, repair charge is required. 6. All products are checked and packed in good condition before dispatch. 7. If anything goes wrong, please contact us within 14 days of receipt. 8. We are not responsible for problems caused by customs. About us 1.We are the largest domestic agent in China, more than 10 years experiences in security B2C market, always provide best best price and best service for our customers. If you are a wholesaler, please contact with us soon, you will find big surprise for your security business. 2.All items are 100% from Dahua and Hikvision, including original and OEM versions. All are from Dahua&Hikvision factory directly, please don’t worry about the quality. 3.We have many stock in China,America,Australia warehouses; most orders will be shipped out within 1-2 business days. Contact us We will do our best to help you about the IP camera or NVR. Please leave us positive feedback with 5 stars if you are satisfied with our items.

Returns Accepted for this item if it's within 30 Days
