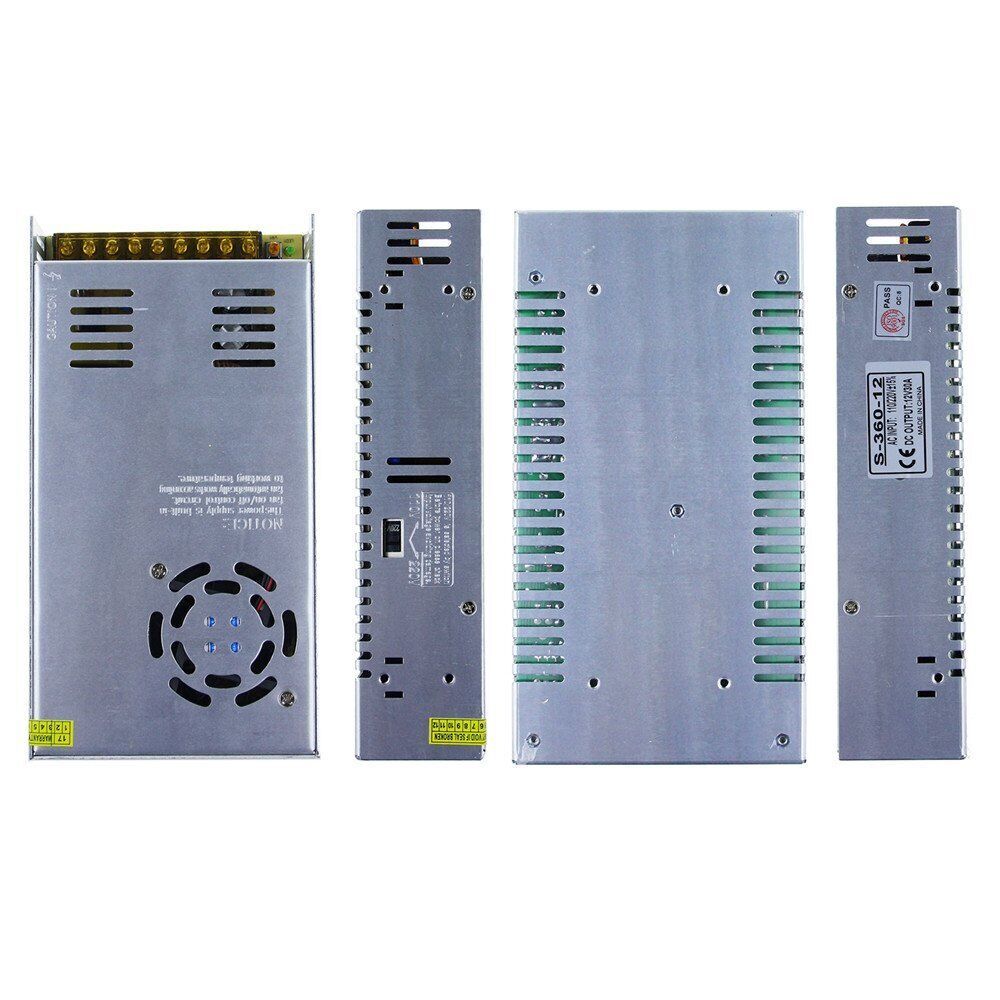

Switch Power Supply 5V/12V/24V AC to DC Converter Adapter Power Transformer New Specifications:
100% full load burn-in test
Universal AC input / full range
It's good quality & high performance
Input: AC110-265V 50/60Hz
Out put: DC 12V ;DC 24V,DC 5V ;
Protections: overload/ over voltage/ short circuit
Cooling by free air convection
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+V / ADJ: Adjust the output voltage
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights
Features:
⚡ [POWER] Switch power supply convert AC 110V/220V to DC 5V/12V/24V - 50W to 720W: The default input voltage is 110V (You can select 110/220),
Output voltage is adjustable 10% , Metal case with many holes makes heat dissipation more efficient.
⚡ [EFFICIENCY] High Efficiency and Reliability: Smart device surge protection for Short-circuit Protection, Overload Protection, Over Voltage, Over
Temperature Protection. Low Temperature Rise. Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or
at power off. Built-in EMI filter, low output ripple, noise, Rugged heavy duty enclosure, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
⚡ [COMPATIBILITY] Wide input voltage range, steady and precise output voltage. Great power transformer for Led Lighting and CCTV Camera Security System,
communications & home appliance electronic equipment etc.
⚡ [QU ALITY] We are committed to provide the best product and services for every customer. If you have any questions or concerns, please message us here and we will respond asap. Size Chat: Type (Output) Size (LxWxH) Intput Voltage (AC) 5V 10A 50W 110mm*78mm*36mm 85V-265V 12V 5A 60W 110mm*78mm*36mm 85V-265V 12V 10A 120W 162mm*98mm*44mm 85V-265V 12V 20A 240W 200mm*100mm*44mm 110V/220V +/- 15% 12V 30A 360W 200mm*100mm*45mm 110V/220V +/- 15% 24V 5A 120W 158mm*98mm*40mm 85V-265V 24V 10A 240W 198mm*98mm*40mm 85V-265V 24V 20A 480W 198mm*110mm*50mm 110V/220V +/- 15% Notes:
1. Voltage output fine adjustment is available for different power condition.
2. Full range of current output is possible for LED lighting with dimmable function.
3. Safety design with shortage protection, overload protection and auto voltage switching.
4. Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
5. This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. Special Notes: This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws. Professional Installation of qualified electrician is highly recommended. Package Includes: 1 * Power Supply About Us Payment Shipping Terms Returns Contact Us 1.Professional 2.High Quality 3.Factory 4.US Warehouse
